Clack Plastic Distributor Heads

Clack Plastic Distributor Heads Designed for simple in-out filters such as pH neutralizers carbon filters etc. The C1190 head can be used for Up flow of Down flow service. The fits a standard 2-1/2'' NPSM tank thread and features a 1.050'' distributor opening. The C1190FP features a drillable pre-tapped _'' FIPT vent port found on the C1190 only . The C1190FP is designed with a removable top or fill port and an internal screen. The C1190FP internal screen is easily serviced and cleaned by using the service wrench provided with each head to disassemble the head. The C1190 series heads require a Clack fitting kit for a proper plumbing connection. See Section 5 for optional fitting kits and option bypass valve. Note: For up flow service with the optional bypass it is necessary to mount the bypass upside down to maintain all the bypass options.

Also See : Standard IN and Out Heads


More Info Product Name Retail Price Our Price

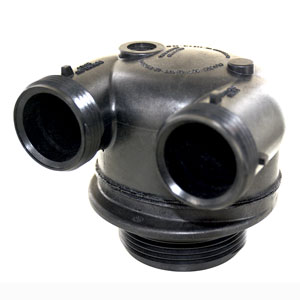

C1190 - Clack Plastic Distributor Head (w/o bypass)
More Info

Clack Plastic Distributor Head (w/o bypass)

Catalog id : C1190

In/Out Head
$47.00 $28.44
C1190 - Clack Plastic Distributor Head (w/o bypass)
More Info

Clack Plastic Distributor Head (w/o bypass)

Catalog id : C1190

$47.00 $28.44
C1190 - Clack Plastic Distributor Head (w/o bypass)
More Info

Clack Plastic Distributor Head (w/o bypass)

Catalog id : C1190

$47.00 $28.44

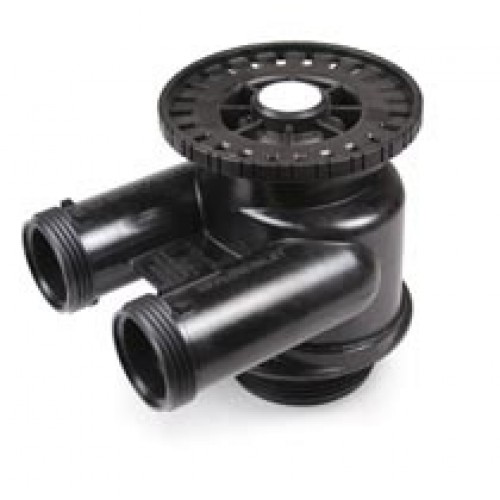

C1190-FP - Clack In/Out Head with Fill Port (w/o bypass) Includes Wrench
More Info

Clack In/Out Head with Fill Port (w/o bypass) Includes Wrench

Catalog id : C1190-FP

Water Filtration Product
$89.66 $66.90
C-BYPASS - Clack bypass assembly
More Info

Clack bypass assembly

Catalog id : C-BYPASS

Bypass valve for C-series Clack valves
$44.90 $29.64
Clack Plastic Distributor Heads

All Images are representative and may or may not be of actual product.
